ADNS-3000 - Low Power Optical Mouse Sensor

PixArt

📥 Download Datasheet

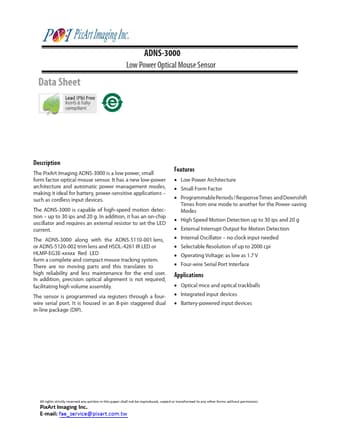

ADNS-3000 Datasheet Preview — Preview of ADNS-3000 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: ADNS-3000
Manufacturer: PixArt
File Size: 652.14 KB
Datasheet: ADNS-3000-PixArt.pdf
Description: Low Power Optical Mouse Sensor

ADNS-3000 Product details

Description

The PixArt Imaging ADNS-3000 is a low power, small form factor optical mouse sensor.. such as cordless input devices.. up to 30 ips and 20 g..

Features

Low Power Architecture.
Small Form Factor.
Programmable Periods / ResponseTimes and Downshift Times from one mode to another for the Power-saving Modes.
High Speed Motion Detection up to 30 ips and 20 g.
External Interrupt Output for Motion Detection.
Internal Oscillator.
no clock input needed.
Selectable Resolution of up to 2000 cpi.
Operating Voltage: as low as 1.7 V.
Four-wire Serial Port Interface.
