PMJ9100S1 Datasheet - PixArt

Media Tracking Chip

PMJ9100S1 Features

* Single axis tracking chip

* Integrated 12 pin module

* High accuracy with error rate of +/- 0.015 mm over 25 mm travel distance

* High resolution of 17904 cpi

* Supports Four-Wire Serial Port Interface (SPI)

* External interrupt output for motion detection

* Internal Os

PMJ9100S1 General Description

The PMJ9100S1 is PixArt Imaging’s high performance Media Tracking Chip (MTC), using low power CMOS chip designed specifically to track print media in printer applications. The MTC offers high repeated accuracy with error rate of +/- 0.015 mm over 25 mm of media movement with speeds up to 15 inches p.

PMJ9100S1 Datasheet (1.53 MB)

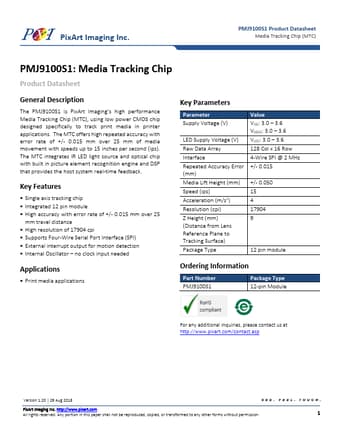

PMJ9100S1 Datasheet Preview — Preview of PMJ9100S1 PDF

Datasheet Details

Part number:

PMJ9100S1

Manufacturer:

PixArt

File Size:

1.53 MB

Description:

Media tracking chip.
