PS20100

Wideband PLL FM Demodulator

PS20100 Features

* Single chip PLL system for wideband FM demodulation Simple low component count application Allows for application of threshold extension Fully balanced low radiation design High operating input sensit

PS20100 General Description

The PS20100 is a wideband PLL FM demodulator, optimised for application in satellite receiver systems and requiring a minimum external component count. It contains all the elements required for construction of a phase locked loop circuit, with the exception of tuning components for the local oscilla.

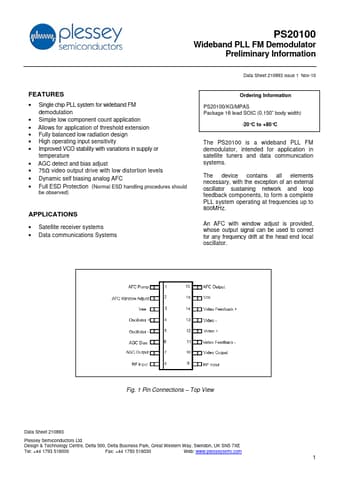

PS20100 Datasheet (925.46 KB)

Preview of PS20100 PDF

Datasheet Details

Part number:

PS20100

Manufacturer:

Plessey Semiconductors

File Size:

925.46 KB

Description:

Wideband pll fm demodulator.
