QS20.244 - SINGLE PHASE INPUT

This page provides the datasheet information for the QS20.244, a member of the QS20244 SINGLE PHASE INPUT family.

Datasheet Summary

Description

The most outstanding

Features

  • of this Dimension QSeries DIN-rail power supply are the high efficiency and the small size, which are achieved by a synchronous rectification and further novel design details. The QS20.244 is a device for 200-240V non-public mains only. This supports regional.

📥 Download Datasheet

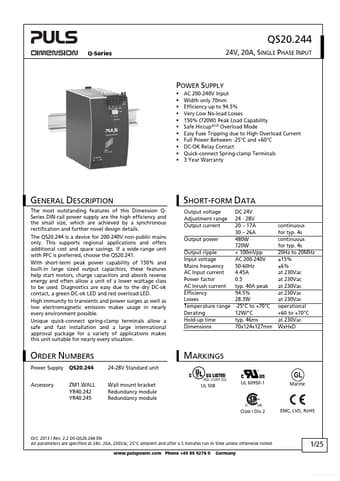

Datasheet preview – QS20.244

Datasheet Details

Part number QS20.244
Manufacturer Plus
File Size 653.50 KB
Description SINGLE PHASE INPUT
Datasheet download datasheet QS20.244 Datasheet
Additional preview pages of the QS20.244 datasheet.

📁 Similar Datasheet

  • QS29FCT52T - (QS29FCT53T) High Speed CMOS 8 Bit Bus Interface Register Transceivers (Quality)
Other Datasheets by Plus

    Full PDF Text Transcription

    Click to expand full text
    QS20.244 Q-Series 24V, 20A, SINGLE PHASE INPUT POWER SUPPLY ƒ ƒ ƒ ƒ ƒ ƒ ƒ ƒ ƒ ƒ ƒ AC 200-240V Input Width only 70mm Efficiency up to 94.5% Very Low No-load Losses 150% (720W) Peak Load Capability Safe HiccupPLUS Overload Mode Easy Fuse Tripping due to High Overload Current Full Power Between -25°C and +60°C DC-OK Relay Contact Quick-connect Spring-clamp Terminals 3 Year Warranty GENERAL DESCRIPTION The most outstanding features of this Dimension QSeries DIN-rail power supply are the high efficiency and the small size, which are achieved by a synchronous rectification and further novel design details. The QS20.244 is a device for 200-240V non-public mains only. This supports regional applications and offers additional cost and space savings.
