TIC126 SILICON CONTROLLED RECTIFIERS

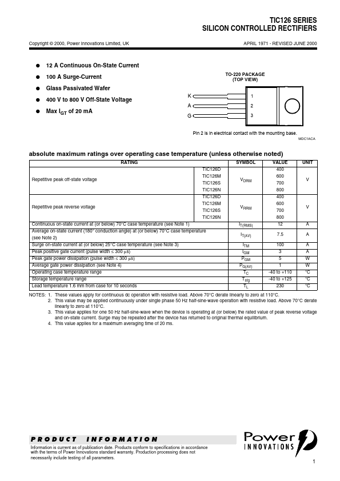

TIC126 SERIES SILICON CONTROLLED RECTIFIERS Copyright © 2000, Power Innovations Limited, UK APRIL 1971 - REVISED JUNE 2000 G G G G G 12 A Continuous On-State Current 100 A Surge-Current Glass Passivated Wafer 400 V to 800 V Off-State Voltage Max IGT of 20 mA K A G 1 2 3 TO-220 PACKAGE (TOP VIEW) Pin 2 is in electrical contact with the mounting base. MDC1ACA absolute maximum ratings over operating case temperature (unless otherwise noted) RATING TIC126D Repetitive peak off-state voltage TIC12.

TIC126 Datasheet (111.30 KB)

TIC126 Datasheet Preview — Preview of TIC126 PDF

Datasheet Details

Part number:

TIC126

Manufacturer:

Power Innovations Limited

File Size:

111.30 KB

Description:

Silicon controlled rectifiers.
