TISP4400H3BJ - BIDIRECTIONAL THYRISTOR OVERVOLTAGE PROTECTORS
These devices are designed to limit overvoltages on the telephone line.
Overvoltages are normally caused by a.c.
power system or lightning flash disturbances which are induced or conducted on to the telephone line.
A single device provides 2-point protection and is typically used for the protection

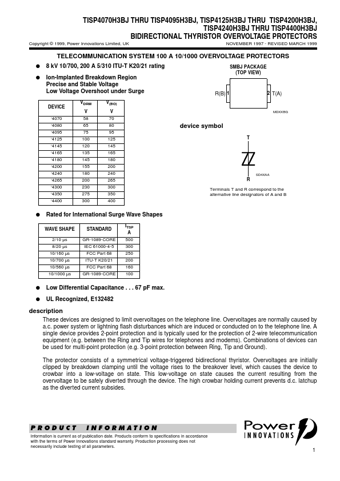

TISP4070H3BJ THRU TISP4095H3BJ, TISP4125H3BJ THRU TISP4200H3BJ, TISP4240H3BJ THRU TISP4400H3BJ BIDIRECTIONAL THYRISTOR OVERVOLTAGE PROTECTORS Copyright © 1999, Power Innovations Limited, UK NOVEMBER 1997 - REVISED MARCH 1999 TELECOMMUNICATION SYSTEM 100 A 10/1000 OVERVOLTAGE PROTECTORS q q 8 kV 10/700, 200 A 5/310 ITU-T K20/21 rating Ion-Implanted Breakdown Region Precise and Stable Voltage Low Voltage Overshoot under Surge DEVICE ‘4070 ‘4080 ‘4095 ‘4125 ‘4145 ‘4165 ‘4180 ‘4200 ‘4240 ‘4265 ‘43
