LNK501G Energy Efficient/ CV/CC Switcher for Very Low Cost Chargers and Adapters

LinkSwitch is specifically designed to replace all linear transformer/ RCC chargers and adapters in the ≤ 3 W universal range at equal or lower system cost with much higher performance and energy efficiency. LinkSwitch introduces a revolutionary topology for the design of low power switching power s.

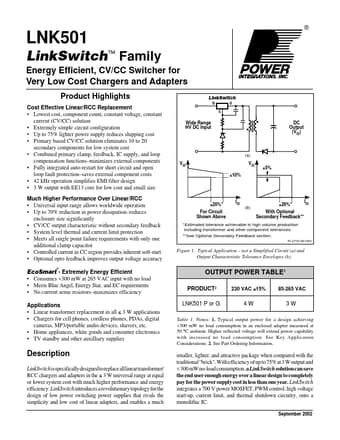

® LNK501 LinkSwitch™ Family Energy Efficient, CV/CC Switcher for Very Low Cost Chargers and Adapters Product Highlights Cost Effective Linear/RCC Replacement Lowest cost, component count, constant voltage, constant current (CV/CC) solution Extremely simple circuit configuration Up to 75% lighter power supply reduces shipping cost Primary based CV/CC solution eliminates 10 to 20 secondary components for low system cost Combined primary clamp, fee.

LNK501G Features

* th Optocoupler Feedback. Output Voltage Inherent CC to CV transition point Tolerance envelope without optocoupler Typical inherent characteristic without optocoupler Cha
