TOP201 Three-terminal Off-line PWM Switch

Power Integrations Inc.

Description

® TOP200-4/14 TOPSwitch® Family Three-terminal Off-line PWM Switch Product Highlights Low Cost Replacement for Discrete Switchers * 20 to 50 .
The TOPSwitch family implements, with only three pins, all functions necessary for an off-line switched mode control system: high voltage N-channel po.

📥 Download Datasheet

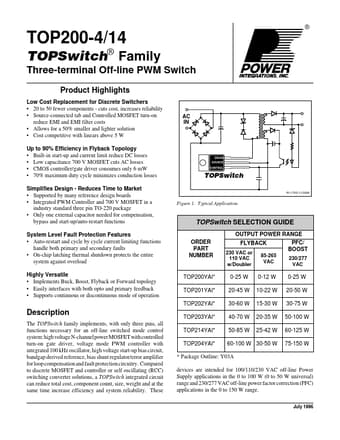

TOP201 Datasheet Preview — Preview of TOP201 PDF

Datasheet Specifications

Part number: TOP201
Manufacturer: Power Integrations Inc.
File Size: 160.29 KB
Datasheet: TOP201_PowerIntegrationsInc..pdf
Description: Three-terminal Off-line PWM Switch

Features

* Auto-restart and cycle by cycle current limiting functions handle both primary and secondary faults
* On-chip latching thermal shutdown protects the entire system against overload Highly Versatile
* Implements Buck, Boost, Flyback or Forward topology
* Easily interf

Applications

* in the 0 to 100 W (0 to 50 W universal) range and 230/277 VAC off-line power factor correction (PFC) applications in the 0 to 150 W range. July 1996 TOP200-4/14 + + - CONTROL VC ZC SHUNT REGULATOR/ ERROR AMPLIFIER 5.7 V 5.7 V 4.7 V 0 1 SHUTDOWN/ AUTO-RESTART + - POWER-UP RESET EXTERNALLY TRI
