TOP202

Three-terminal Off-line PWM Switch

TOP202 Features

* Auto-restart and cycle by cycle current limiting functions handle both primary and secondary faults

* On-chip latching thermal shutdown protects the entire system against overload Highly Versatile

* Implements Buck, Boost, Flyback or Forward topology

* Easily interf

TOP202 General Description

The TOPSwitch family implements, with only three pins, all functions necessary for an off-line switched mode control system: high voltage N-channel power MOSFET with controlled turn-on gate driver, voltage mode PWM controller with integrated 100 kHz oscillator, high voltage start-up bias circuit, ba.

TOP202 Datasheet (160.70 KB)

Preview of TOP202 PDF

Datasheet Details

Part number:

TOP202

Manufacturer:

Power Integrations Inc.

File Size:

160.70 KB

Description:

Three-terminal off-line pwm switch.

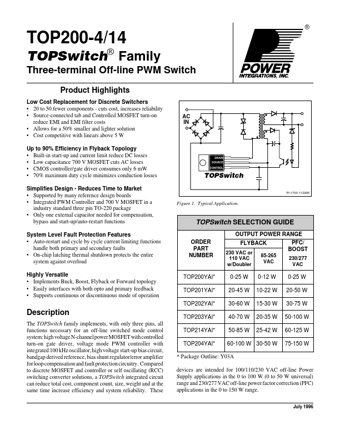

® TOP200-4/14 TOPSwitch® Family Three-terminal Off-line PWM Switch Product Highlights Low Cost Replacement for Discrete Switchers

* 20 to 50 .
