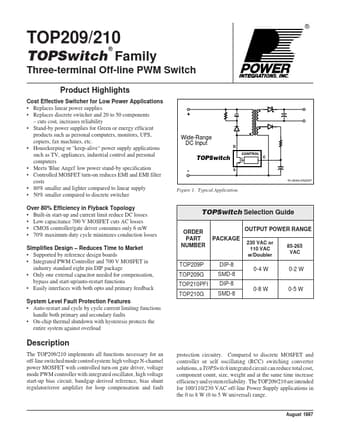

TOP209G
Features
- Auto-restart and cycle by cycle current limiting functions handle both primary and secondary faults
- On-chip thermal shutdown with hysteresis protects the entire system against overload
®
+
Wide-Range DC Input TOPSwitch
- D
CONTROL
PI-2043-052397
Figure 1. Typical Application.
TOPSwitch Selection Guide
ORDER PART NUMBER OUTPUT POWER RANGE PACKAGE
230 VAC or 110 VAC w/Doubler 85-265 VAC
TOP209P TOP209G TOP210PFI TOP210G
DIP-8 SMD-8 DIP-8 SMD-8
0-4 W
0-2 W
0-8 W
0-5 W
Description
The TOP209/210 implements all functions necessary for an off-line switched mode control system: high voltage N-channel power MOSFET with controlled turn-on gate driver, voltage mode PWM controller with integrated oscillator, high voltage start-up bias circuit, bandgap derived reference, bias shunt regulator/error amplifier for loop pensation and fault protection circuitry. pared to discrete MOSFET and controller or self oscillating (RCC) switching converter solutions, a TOPSwitch...
