INN3375C - Digitally Controllable Off-Line CV/CC QR Flyback Switcher

Download the INN3375C datasheet PDF. This datasheet also covers the INN3365C variant, as both devices belong to the same digitally controllable off-line cv/cc qr flyback switcher family and are provided as variant models within a single manufacturer datasheet.

General Description

The InnoSwitch™3-Pro series family of ICs dramatically simplifies the development and manufacturing of fully programmable, highly efficient power supplies, particularly those in compact enclosures.

Key Features

  • PowiGaN™ technology.
  • up to 100 W without heatsinks (INN3379C and INN3370C) Highly Integrated, Compact Footprint.
  • Multi-mode Quasi-Resonant (QR) / DCM / CCM flyback controller, high-voltage switch, secondary-side sensing and synchronous rectifier driver.
  • Optimized efficiency across line and load range.
  • Integrated FluxLink™, HIPOT-isolated, feedback link.
  • Instantaneous transient response.
  • Drives low-cost N-channel FET series load swit.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (INN3365C-PowerIntegrations.pdf) that lists specifications for multiple related part numbers.

Full PDF Text Transcription for INN3375C (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for INN3375C. For precise diagrams, and layout, please refer to the original PDF.

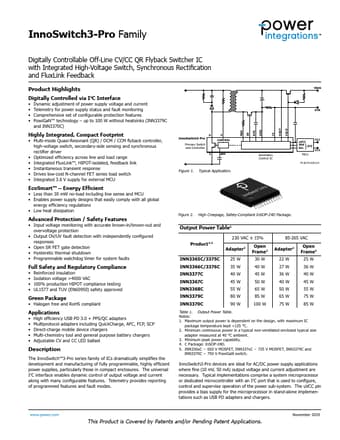

InnoSwitch3-Pro Family Digitally Controllable Off-Line CV/CC QR Flyback Switcher IC with Integrated High-Voltage Switch, Synchronous Rectification and FluxLink Feedback P...

View more extracted text
High-Voltage Switch, Synchronous Rectification and FluxLink Feedback Product Highlights Digitally Controlled via I2C Interface • Dynamic adjustment of power supply voltage and current • Telemetry for power supply status and fault monitoring • Comprehensive set of configurable protection features • PowiGaN™ technology – up to 100 W without heatsinks (INN3379C and INN3370C) Highly Integrated, Compact Footprint • Multi-mode Quasi-Resonant (QR) / DCM / CCM flyback controller, high-voltage switch, secondary-side sensing and synchronous rectifier driver • Optimized efficiency across line and load range • Integrated FluxLink™, HI
