LYT6073C Flyback CV/CC LED Driver

The LYTSwitch™-6 series family of ICs dramatically simplifies the development and manufacturing of off-line LED drivers, particularly those in compact enclosures or with high efficiency requirements. The LYTSwitch-6 architecture is revolutionary in that the devices incorporate both primary and secon.

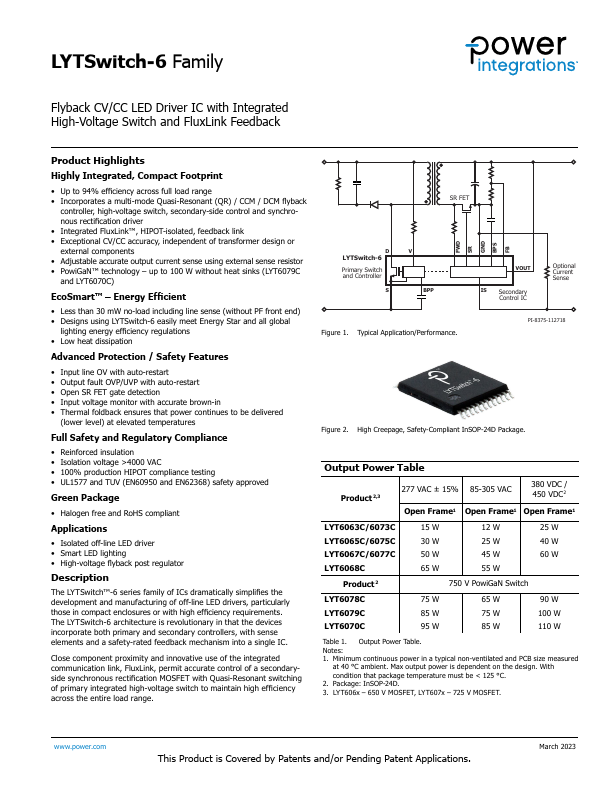

LYTSwitch-6 Family Flyback CV/CC LED Driver IC with Integrated High-Voltage Switch and FluxLink Feedback Product Highlights Highly Integrated, Compact Footprint Up to 94% efficiency across full load range Incorporates a multi-mode Quasi-Resonant (QR) / CCM / DCM flyback controller, high-voltage switch, secondary-side control and synchronous rectification driver Integrated FluxLink™, HIPOT-isolated, feedback link Exceptional CV/CC accuracy, independent of.

LYT6073C Features

* Input line OV with auto-restart

* Output fault OVP/UVP with auto-restart

* Open SR FET gate detection

* Input voltage monitor with accurate brown-in

* Thermal foldback ensures that power continues to be delivered (lower level) at elevated temperatures Full S

LYT6063C-PowerIntegrations.pdf

LYT6073C Datasheet Preview — This datasheet PDF includes multiple part numbers: LYT6073C, LYT6063C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LYT6073C, LYT6063C

Manufacturer:

Power Integrations

File Size:

3.10 MB

Description:

Flyback cv/cc led driver.

Note:

This datasheet PDF includes multiple part numbers: LYT6073C, LYT6063C.
Please refer to the document for exact specifications by model.
