ASR01-24S12, ASR01, ASR01 Series DC-DC CONVERTER

ASR01 ASR01-SERIES DC-DC CONVERTER －7VDC~－32VDC WIDE INPUT RANGE UP TO 15Watts .

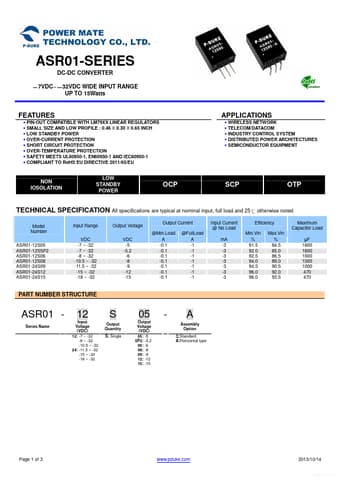

datasheet Preview Page 1 from Datasheet4u.com

ASR01-PowerMateTechnology.pdf

ASR01-24S12 Datasheet Preview — This datasheet PDF includes multiple part numbers: ASR01-24S12, ASR01. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ASR01-24S12, ASR01

Manufacturer:

Power Mate Technology

File Size:

448.02 KB

Description:

ASR01 Series DC-DC CONVERTER

Note:

This datasheet PDF includes multiple part numbers: ASR01-24S12, ASR01.
Please refer to the document for exact specifications by model.

Features

* PIN-OUT COMPATIBLE WITH LM79XX LINEAR REGULATORS
* SMALL SIZE AND LOW PROFILE : 0.46 X 0.30 X 0.65 INCH
* LOW STANDBY POWER
* OVER-CURRENT PROTECTION
* SHORT CIRCUIT PROTECTION
* OVER-TEMPERATURE PROTECTION
* SAFETY MEETS UL60950-1, EN60950-1

Applications

* WIRELESS NETWORK
* TELECOM/DATACOM
* INDUSTRY CONTROL SYSTEM
* DISTRIBUTED POWER ARCHITECTURES
* SEMICONDUCTOR EQUIPMENT NON IOSOLATION LOW STANDBY POWER OCP SCP OTP TECHNICAL SPECIFICATION All specifications are typical at nominal input, full load and
