20IMX15-05-9R 15WattDC-DCConverters

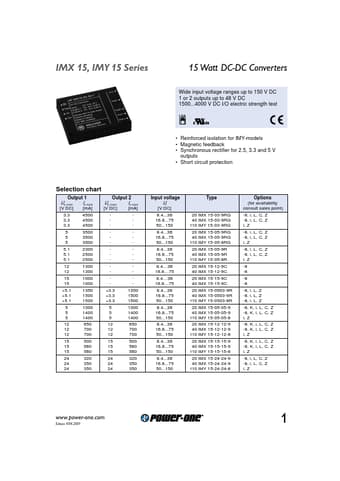

IMX 15, IMY 15 Series 15 Watt DC-DC Converters Wide input voltage ranges up to 150 V DC 1 or 2 outputs up to 48 V DC 15004000 V DC I/O electric strength test LGA Reinforced isolation for IMY-models Magnetic feedback Synchronous rectifier for 2.5, 3.3 and 5 V outputs Short circuit protection Selection chart Output 1 Output 2 Input voltage Type Uo nom [V DC] 3.3 3.3 3.3 5 5 5 5.1 5.1 5.1 12 12 15 15 +5.1 +5.1 +5.1 5 5 5 12 12 12 15 15 15 24 24 24 Io nom.
