24IMS7-24-24-9 Datasheet - Power-One

24IMS7-24-24-9 DC-DC Converter

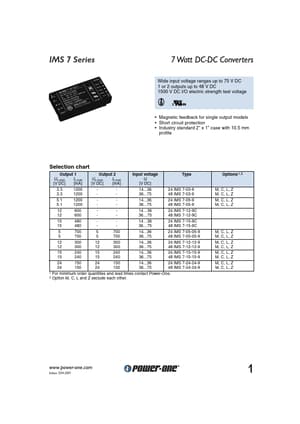

IMS 7 Series 7 Watt DC-DC Converters Wide input voltage ranges up to 75 V DC 1 or 2 outputs up to 48 V DC 1500 V DC I/O electric strength test voltage Magnetic feedback for single output models Short circuit protection Industry standard 2" x 1" case with 10.5 mm profile Selection chart Output 1 Output 2 Input voltage Type Uo nom Io nom Uo nom Io nom Ui [V DC] [mA] [V DC] [mA] [V DC] 3.3 1200 1436 24 IMS 7-03-9 3.3 1200 3675 48 IMS 7-03-9 5.1 1200 1436 24 IMS 7-05.

24IMS7-24-24-9 Datasheet (135.86 KB)
