CK1001-7R 150 Watt DC-DC Converters

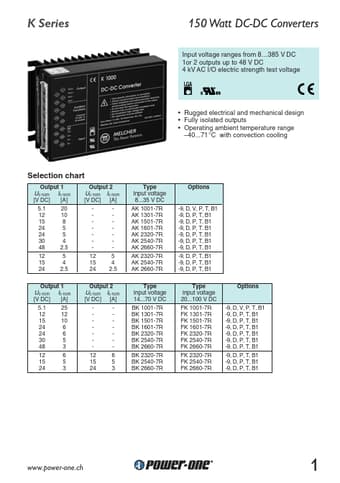

K Series 150 Watt DC-DC Converters Input voltage ranges from 8…385 V DC 1or 2 outputs up to 48 V DC 4 kV AC I/O electric strength test voltage LGA Rugged electrical and mechanical design Fully isolated outputs Operating ambient temperature range 4071 °C with convection cooling Selection chart Output 1 Uo nom Io nom [V DC] [A] 5.1 20 12 10 15 8 24 5 24 5 30 4 48 2.5 12 5 15 4 24 2.5 Output 1 Uo nom Io nom [V DC] [A] 5.1 25 12 12 15 10 24 6 24 6 30 5 48 3 .

CK1001-7R Datasheet (173.58 KB)
