DFA20E12D5, DFA DUAL OUTPUT

DFA20E12D5 Description

DFA20 SERIES DUAL OUTPUT .
The compact, dual output DFA20 series provides power densities up to 11 watts per cubic inch (0.

DFA20E12D5 Features

* Remote ON/OFF and TRIM
* Water Washable Case
* Overcurrent Protection and Thermal Shutdown
* Efficiencies to 85%
* Low Input to Output Capacitance
* 700Volt to 1544Volt Isolation
* Five-Side Shielded Case
* Extended Range Input (2:1)

DFA20E12D5 Applications

* Power-One products are not authorized for use as critical components in life support systems, equipment used in hazardous environments, or nuclear control systems without the express written consent of the President of Power-One, Inc. TECHNICAL REVISIONS The appearance of products, including safety

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DFA20E12D5, DFA. Please refer to the document for exact specifications by model.

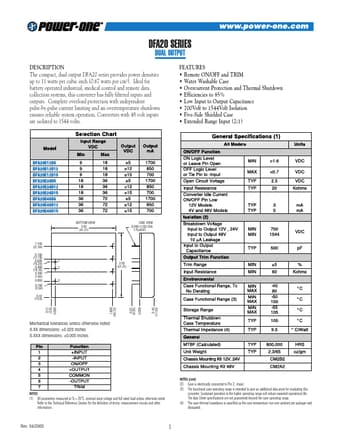

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DFA20E12D5, DFA
Manufacturer
Power-One
File Size
1.20 MB
Datasheet
DFA-20E.pdf
Description
DUAL OUTPUT
Note
This datasheet PDF includes multiple part numbers: DFA20E12D5, DFA.
Please refer to the document for exact specifications by model.
