DFA20E12S5, DFA SINGLE OUTPUT

DFA20E12S5 Description

DFA20 SERIES SINGLE OUTPUT .
The compact DFA20 Series provides power densities up to 11 watts per cubic inch (0.

DFA20E12S5 Features

* Remote ON/OFF and TRIM
* Overcurrent Protection and Thermal Shutdown
* Efficiencies to 83%
* 700V Isolation, Up to 1544V on 48V Converters
* Power Density up to 11 Watts per Cubic Inch
* Five-Side Shielded Case
* Extended Range Input (2:1) B

DFA20E12S5 Applications

* Figure 1 shows the proper connections to use this function. A trimpot value of 10K⍀ should be used for 3.3 and 5 volt outputs. A trimpot value of 20K⍀ should be used for 12 and 15 volt outputs. If the TRIM function is not required the pin may be left floating. +OUT 5 TRIM 7 -OUT 6 USING TRIMPOT 10K

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DFA20E12S5, DFA. Please refer to the document for exact specifications by model.

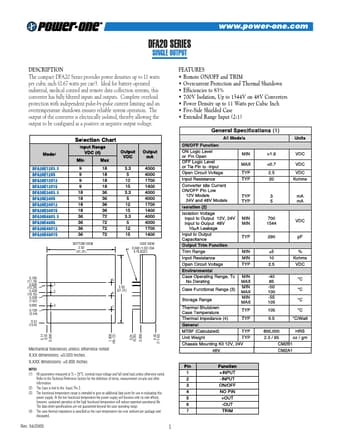

datasheet Preview Page 2 datasheet Preview Page 3
