DFA20E24D12, DFA - DUAL OUTPUT

Name: DFA20E24D12
SKU: DFA20E24D12-494161

Power-One

The DFA20E24D12 by Power-One is a DUAL OUTPUT. Below is the official datasheet preview.

Datasheet Details

Part number	DFA20E24D12, DFA
Manufacturer	Power-One
File Size	1.20 MB
Description	DUAL OUTPUT
Datasheet	DFA-20E.pdf
Note	This datasheet PDF includes multiple part numbers: DFA20E24D12, DFA. Please refer to the document for exact specifications by model.

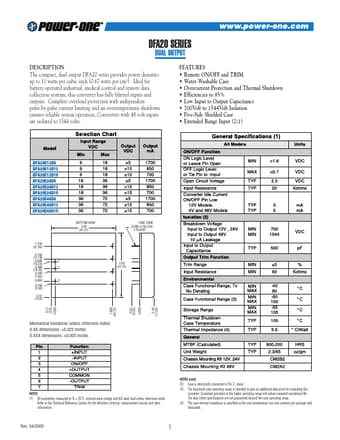

Additional preview pages of the DFA20E24D12 datasheet.

The compact, dual output DFA20 series provides power densities up to 11 watts per cubic inch (0.67 watts per cm3).

Remote ON/OFF and TRIM.
Water Washable Case.
Overcurrent Protection and Thermal Shutdown.
Efficiencies to 85%.
Low Input to Output Capacitance.
700Volt to 1544Volt Isolation.
Five-Side Shielded Case.
Extended Range Input (2:1) BOTTOM VIEW 2.02 (51.31) SIDE VIEW 0.040 (1.02) DIA 7 PLACES 1.100 (27.94) 0.700 (17.78) 0.600 (15.24) 0.400 (10.16) 0.300 (7.62) 0.000 0.100 (2.54) 0.51 (13.0) 4 5 1 2 6 2.02 (51.31) 3 7 0.25.
