DFC25E24S5, DFC25E24S5_Power SINGLE OUTPUT

DFC25E24S5 Description

DFC25 SERIES SINGLE OUTPUT .
The DFC25 Series DC/DC converter provides tightly regulated output voltages for industrial and datacom applications from 12, 24, or 48 Volt inputs.

DFC25E24S5 Features

* Up to 30 Watts Output Power
* Remote ON/OFF
* Common and Differential Mode Input Filters
* +3.3, +5V, or +12V Outputs
* Remote Voltage Sense
* Efficiencies to 81%
* Operation from -25°C to 85°C
* 700/1544V Isolation
* Two Year

DFC25E24S5 Applications

* from 12, 24, or 48 Volt inputs. Available output power ranges from 24.75 to 30 watts. Excellent noise performance is attained via an aluminum case, toroidal magnetics, and double shielded transformers. Common mode and differential mode input filtering is integral to the design. Selected models provi

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DFC25E24S5, DFC25E24S5_Power. Please refer to the document for exact specifications by model.

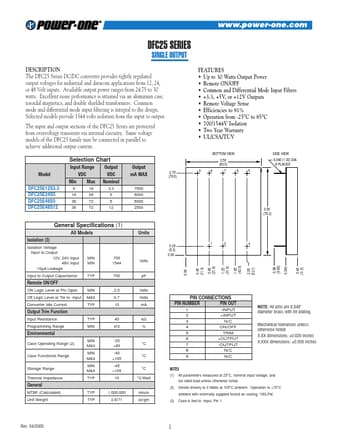

datasheet Preview Page 2

Datasheet Details

Part number
DFC25E24S5, DFC25E24S5_Power
Manufacturer
Power-One
File Size
115.89 KB
Datasheet
DFC25E24S5_Power-One.pdf
Description
SINGLE OUTPUT
Note
This datasheet PDF includes multiple part numbers: DFC25E24S5, DFC25E24S5_Power.
Please refer to the document for exact specifications by model.
