FM2540-7 50 Watt DC-DC Converters

M Series 50 Watt DC-DC Converters Wide input voltage from 8372 V DC 1, 2 or 3 isolated outputs up to 48 V DC 4 kV AC I/O electric strength test voltage LGA Rugged electrical and mechanical design Outputs individually controlled with excellent dynamic properties Operating ambient temperature range 4071 °C Selection chart Output 1 Output 2 Uo nom Io nom Uo nom Io nom [V DC] [A] [V DC] [A] 5.1 8 12 4 15 3.4 24 2 48 1 12 2 12 2 15 1.7 15 1.7 5.1 5 12 0.7 5.1.

FM2540-7 Datasheet (146.91 KB)

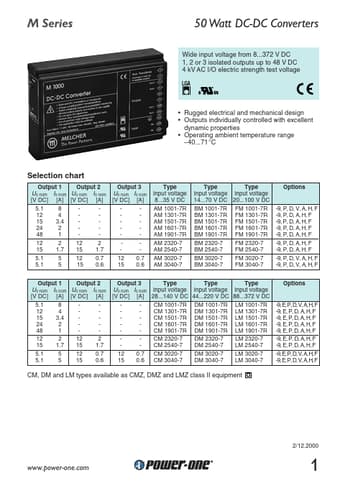

FM2540-7 Datasheet Preview — Preview of FM2540-7 PDF

Datasheet Details

Part number:

FM2540-7

Manufacturer:

Power-One

File Size:

146.91 KB

Description:

50 watt dc-dc converters.
