IMR Datasheet - Power-One

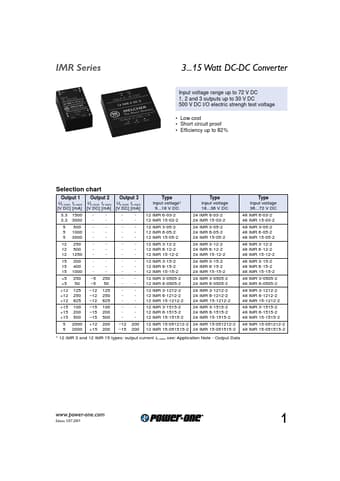

IMR 3...15 Watt DC-DC Converter

IMR Series 315 Watt DC-DC Converter Input voltage range up to 72 V DC 1, 2 and 3 outputs up to 30 V DC 500 V DC I/O electric strengh test voltage Low cost Short circuit proof Efficiency up to 82% Selection chart Output 1 Output 2 Output 3 Uo nom Io nom Uo nom Io nom Uo nom Io nom [V DC] [mA] [V DC] [mA] [V DC] [mA] 3.3 1500 3.3 3000 5 500 5 1000 5 3000 12 250 12 500 12 1250 15 200 15 400 15 1000 +5 250 5 250 +5 50 5 50 +12 125 12 125 +12.

IMR Datasheet (64.86 KB)
