LXR1601-6 375 and 500 Watt AC-DC Converters

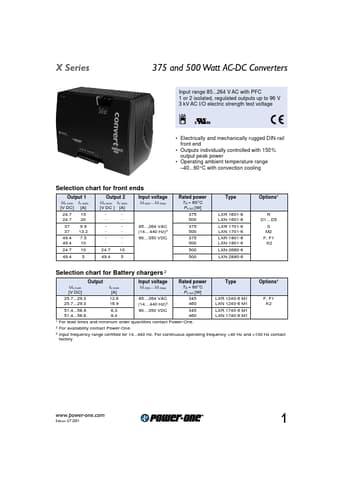

X Series 375 and 500 Watt AC-DC Converters Input range 85264 V AC with PFC 1 or 2 isolated, regulated outputs up to 96 V 3 kV AC I/O electric strength test voltage LGA Electrically and mechanically rugged DIN-rail front end Outputs individually controlled with 150% output peak power Operating ambient temperature range 4060 °C with convection cooling Selection chart for front ends Output 1 Uo nom Io nom [V DC] [A] 24.7 15 24.7 20 37 9.9 37 13.2 49.4 7.5 4.

LXR1601-6_Power-One.pdf

This datasheet PDF includes multiple part numbers: LXR1601-6, LXR1601-6_Power. Please refer to the document for exact specifications by model.
LXR1601-6 Datasheet Preview Page 2 LXR1601-6 Datasheet Preview Page 3

Datasheet Details

Part number:

LXR1601-6, LXR1601-6_Power

Manufacturer:

Power-One

File Size:

247.89 KB

Description:

375 and 500 watt ac-dc converters.

Note:

This datasheet PDF includes multiple part numbers: LXR1601-6, LXR1601-6_Power.
Please refer to the document for exact specifications by model.
