RNS01EG-M6 RNS Series: 5-10W DC/DC Converters 18-72 & 38-75V Input 3.3V/ 5.0V/ 7.0V and 12V Outputs Outputs of 2.5V & 15V/ available with trimming

The RNS series of converters are industry standard, 2” x 1” size, low profile, single output, DC/DC converters intended for SMT placement and reflow soldering. The product provides on-board conversion of a wide range of standard telecom, datacom and industrial input voltages to isolated low output v.

RNS01EG-M6 Features

* Single board design Synchronization function Low profile

* 8.5 mm height Excellent co-planarity Input/output isolation: 1500 Vdc Convection cooling Low conducted

RNS-06Z.pdf

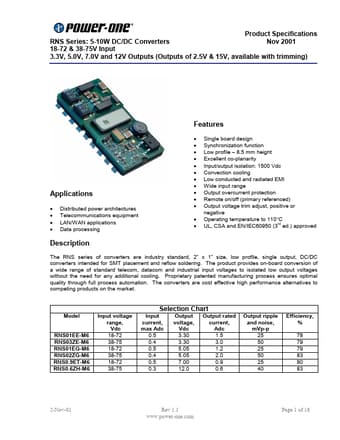

RNS01EG-M6 Datasheet Preview — This datasheet PDF includes multiple part numbers: RNS01EG-M6, RNS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RNS01EG-M6, RNS

Manufacturer:

Power-One

File Size:

429.29 KB

Description:

Rns series: 5-10w dc/dc converters 18-72 & 38-75v input 3.3v/ 5.0v/ 7.0v and 12v outputs outputs of 2.5v & 15v/ available with trimming.

Note:

This datasheet PDF includes multiple part numbers: RNS01EG-M6, RNS.
Please refer to the document for exact specifications by model.
