TQD085ZED-A, TQD085ZED-A_Power DUAL OUTPUT/ 100 WATT

TQD085ZED-A Description

TQD SERIES - DUAL OUTPUT, 100 WATT .
The TQD DC/DC converters are high power, dual output, fully isolated converters that feature high efficiency, 1500 VDC isolation, and open-frame packa.

TQD085ZED-A Features

* Independent Dual Outputs
* Flexible Load Sharing
* High Efficiency
* Open Frame Design
* Planar Magnetics
* Synchronous Rectification
* Independent Trim For Each Output
* 1500V Isolation
* 100°C Baseplate Operation 18 - 36 VD

TQD085ZED-A Applications

* - Power-One products are not authorized for use as critical components in life support systems, equipment used in hazardous environments, or nuclear control systems without the express written consent of the President of Power-One, Inc. TECHNICAL REVISIONS - The appearance of products, including saf

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TQD085ZED-A, TQD085ZED-A_Power. Please refer to the document for exact specifications by model.

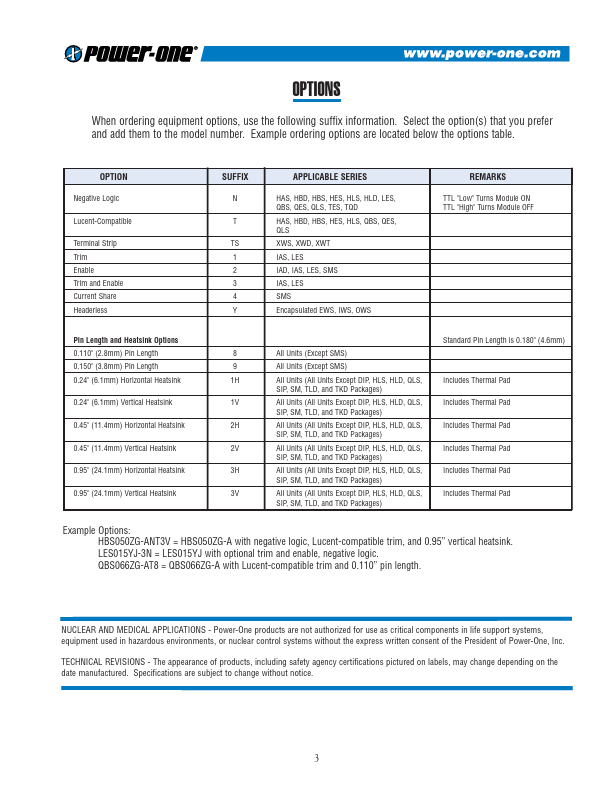

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TQD085ZED-A, TQD085ZED-A_Power
Manufacturer
Power-One
File Size
118.75 KB
Datasheet
TQD085ZED-A_Power-One.pdf
Description
DUAL OUTPUT/ 100 WATT
Note
This datasheet PDF includes multiple part numbers: TQD085ZED-A, TQD085ZED-A_Power.
Please refer to the document for exact specifications by model.
