PT6308, PT6305 Datasheet - Power Trend

PT6308 3AMP HIGH-PERFORMANCE ADJUSTABLE ISR

For assistance or to order, call (800) 531-5782 PT6305 Series 3 AMP HIGH-PERFORMANCE ADJUSTABLE ISR Single-Device 5V to 3V Power 85% Efficiency Small SIP Footprint: 0.36" x 2.00” x 0.60"(H) Wide Input Voltage Range: +4.5V to +9.0V Internal Short Circuit Protection Over-Temperature Protection The PT6305N is Power Trends’ new high performance +5V to +3.3V, 3 Amp, 12-Pin SIP (Single In-linePackage) Integrated Switching Regulator (ISR).

PT6305-PowerTrend.pdf

This datasheet PDF includes multiple part numbers: PT6308, PT6305. Please refer to the document for exact specifications by model.

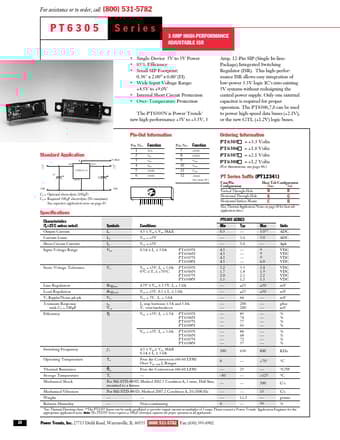

PT6308 Datasheet Preview Page 2 PT6308 Datasheet Preview Page 3

Datasheet Details

Part number:

PT6308, PT6305

Manufacturer:

Power Trend

File Size:

332.38 KB

Description:

3amp high-performance adjustable isr.

Note:

This datasheet PDF includes multiple part numbers: PT6308, PT6305.
Please refer to the document for exact specifications by model.
