PT6409, PT6400 Datasheet - Power Trend

PT6409 3Amp 5V Input Adjustable Integrated Switching Regulator

PT6400 Series 3 Amp 5V Input Adjustable Integrated Switching Regulator SLTS032A (Revised 6/30/2000) Single-Device 5V to 3V Power 85% Efficiency Small SIP Footprint Adjustable Output Voltage The PT6400 is a high performance +5V to +3.3V, 3 Amp, 12-Pin SIP (Single In-line Package) Integrated Switching Regulator (ISR) designed for stand alone (not parallelable) operation. This high-performance ISR allows easy integration of low-power 3.3V logic IC’s into e.

PT6400-PowerTrend.pdf

This datasheet PDF includes multiple part numbers: PT6409, PT6400. Please refer to the document for exact specifications by model.

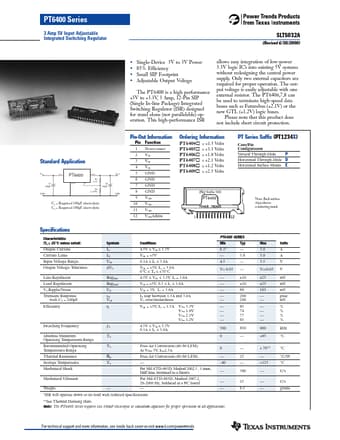

PT6409 Datasheet Preview Page 2 PT6409 Datasheet Preview Page 3

Datasheet Details

Part number:

PT6409, PT6400

Manufacturer:

Power Trend

File Size:

528.53 KB

Description:

3amp 5v input adjustable integrated switching regulator.

Note:

This datasheet PDF includes multiple part numbers: PT6409, PT6400.
Please refer to the document for exact specifications by model.
