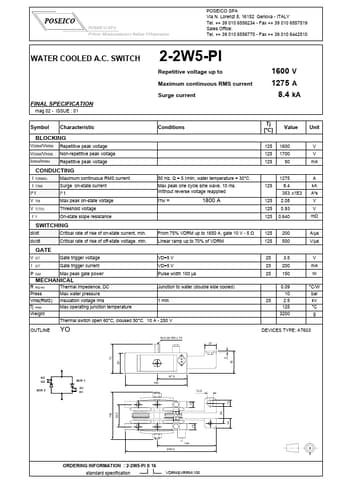

2-2W5-PI
2-2W5-PI is WATERCOOLEDA.C.SWITCH manufactured by PowerSemiconductors.
POSEICO
POSEICO SPA POwer SEmiconductors Italian COrporation
POSEICO SPA Via N. Lorenzi 8, 16152 Genova
- ITALY Tel. ++ 39 010 6556234
- Fax ++ 39 010 6557519 Sales Office: Tel. ++ 39 010 6556775
- Fax ++ 39 010 6442510
WATER COOLED A.C. SWITCH
Repetitive voltage up to Maximum continuous RMS current Surge current
1600 V 1275 A 8.4 kA
FINAL SPECIFICATION mag 02
- ISSUE : 01
Symbol
Characteristic
Conditions
Tj [°C]
125 125 125
Value
Unit
BLOCKING
VDRM/VRRM VDSM/VRSM IDRM/IRRM Repetitive peak voltage Non-repetitive peak voltage Repetitive peak voltage Maximum continuous RMS current Surge on-state current I² t Max peak on-state voltage Threshold voltage On-state slope...
