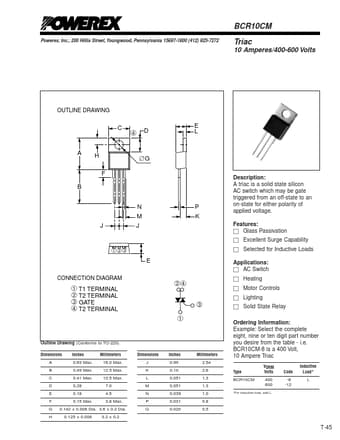

BCR10CM
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (412) 925-7272
Triac
10 Amperes/400-600 Volts
OUTLINE DRAWING
C
D
E L
A
H F
лG
Description: A triac is a solid state silicon AC switch which may be gate triggered from an off-state to an on-state for either polarity of applied voltage. Features: □ Glass Passivation □ Excellent Surge Capability □ Selected for Inductive Loads
B N M J J P K
E
CONNECTION DIAGRAM
Applications: □ AC Switch
T1 TERMINAL T2 TERMINAL GATE T2 TERMINAL
□ Heating □ Motor Controls □ Lighting □ Solid State Relay Ordering Information: Example: Select the complete eight, nine or ten digit part number you desire from the table - i.e.
