CD610816A - Dual & Single Diode-Module

Description

Powerex Dual Diode & Single Diode Modules are des

📥 Download Datasheet

Datasheet preview – CD610816A

Datasheet Details

Part number CD610816A
Manufacturer Powerex Power Semiconductors
File Size 98.85 KB
Description Dual & Single Diode-Module
Datasheet download datasheet CD610816A Datasheet
Additional preview pages of the CD610816A datasheet.

📁 Similar Datasheet

  • CD610816C - Dual Diode-Module (INCHANGE)
  • CD6208CB - Reversible Motor Driver (HUAJING)
  • CD6208CS - Reversible Motor Driver (HUAJING)
  • CD6282CS - 4.6W X 2 Dual-channel audio power amplifier (ETC)
  • CD6283CS - 4.6w x 2 Dual audio power amplifier (ETC)
  • CD6309 - 0.5W Zener Diode (VPT)
  • CD6310 - 0.5W Zener Diode (VPT)
  • CD6311 - 0.5W Zener Diode (VPT)
  • CD6312 - 0.5W Zener Diode (VPT)
  • CD6313 - 0.5W Zener Diode (VPT)
Other Datasheets by Powerex Power Semiconductors
  • CD611216A - POW-R-BLOK Dual & Single Diode Isolated Module 160 Amperes / Up to 1600 Volts
  • CD611416A - POW-R-BLOK Dual & Single Diode Isolated Module 160 Amperes / Up to 1600 Volts
  • CD611616A - POW-R-BLOK Dual & Single Diode Isolated Module 160 Amperes / Up to 1600 Volts
  • CD620815A - POW-R-BLOK Dual SCR/Diode Isolated Module 150 Amperes / Up to 1600 Volts
  • CD621215A - POW-R-BLOK Dual SCR/Diode Isolated Module 150 Amperes / Up to 1600 Volts
  • CD621415A - POW-R-BLOK Dual SCR/Diode Isolated Module 150 Amperes / Up to 1600 Volts
  • CD6215A - POW-R-BLOK Dual SCR/Diode Isolated Module 150 Amperes / Up to 1600 Volts
  • CD621615A - POW-R-BLOK Dual SCR/Diode Isolated Module 150 Amperes / Up to 1600 Volts

Full PDF Text Transcription

Click to expand full text

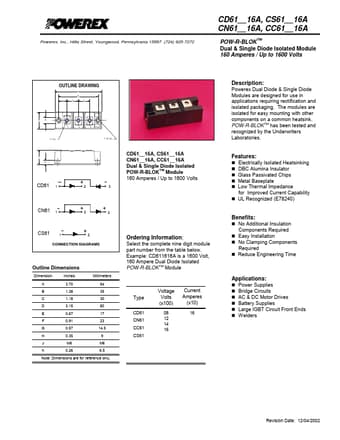

Powerex, Inc., Hillis Street, Youngwood, Pennsylvania 15697 (724) 925-7272 CD61__16A, CS61__16A CN61__16A, CC61__16A POW-R-BLOKTM Dual & Single Diode Isolated Module 160 Amperes / Up to 1600 Volts OUTLINE DRAWING A D EF F BG "J" (3 ) 12 3 F "K" (2) C H CD61 ~ 1 - 23 CD61__16A, CS61__16A CN61__16A, CC61__16A Dual & Single Diode Isolated POW-R-BLOKTM Module 160 Amperes / Up to 1600 Volts ++ + + -CN61 1 23 -CS61 1 2 CONNECTION DIAGRAMS Outline Dimensions Dimension Inches Millimeters A 3.70 94 B 1.38 35 C 1.18 30 D 3.15 E 0.67 80 17 F 0.91 23 G 0.57 14.5 H 0.35 9 J M6 M6 K 0.26 6.5 Note: Dimensions are for reference only. Ordering Information: Select the complete nine digit module part number from the table below.
