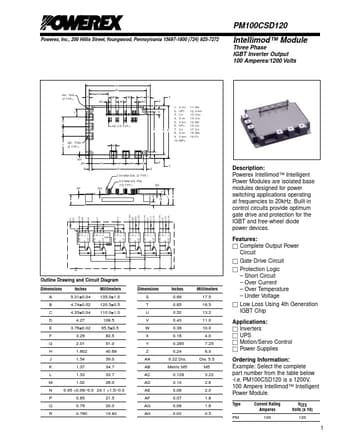

Datasheet Preview Page 1

Description

PM100CSD120 Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 Intellimod™ Module Three Phase IGBT Inverter Output 1.
Powerex Intellimod™ Intelligent Power Modules are isolated base modules designed for power switching applications operating at frequencies to 20kHz.

📥 Download Datasheet

PM100CSD120 Datasheet Preview — Preview of PM100CSD120 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Specifications

Part number: PM100CSD120
Manufacturer: Powerex Power Semiconductors
File Size: 264.38 KB
Datasheet: PM100CSD120_PowerexPowerSemiconductors.pdf
Description: Intelligent Power Module

Features

* Complete Output Power Circuit
* Gate Drive Circuit
* Protection Logic
* Short Circuit
* Over Current
* Over Temperature
* Under Voltage
