PM300CVA060 Intelligent Power Module

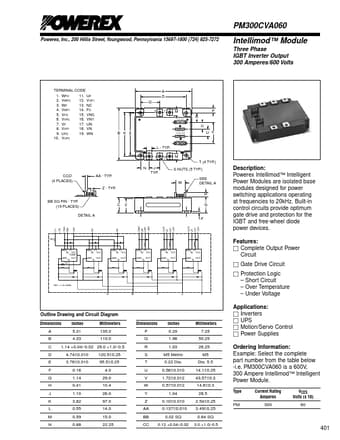

PM300CVA060 Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 Intellimod™ Module Three Phase IGBT Inverter Output 300 Amperes/600 Volts TERMINAL CODE 1. WFO 11. UP 2. VWPC 12. VUP1 3. WP 13. NC 4. VWP1 14. FO 5. VFO 15. VNC 6. VVPC 16. VN1 7. VP 17. UN 8. VVP1 18. VN 9. UFO 19. WN 10. VUPC A D Q N P M 1234 P R U B K E 5678 9 10 1112 U V 13 14 15 16 L - TYP. U V W 17 18 19 M T (4 TYP.) N CCØ (4 PLACES) AA - TYP. Z - TYP. H BB SQ PIN - TYP. (19 PLACES.

PM300CVA060 Features

* Complete Output Power Circuit

* Gate Drive Circuit

* Protection Logic

* Short Circuit

* Over Temperature

* Under Voltage Applications:

* Inverters

* UPS

* Motion/Servo Control

* Power Supplies Ordering Information: Ex

PM300CVA060_PowerexPowerSemiconductors.pdf

PM300CVA060 Datasheet Preview — Preview of PM300CVA060 PDF

Datasheet Details

Part number:

PM300CVA060

Manufacturer:

Powerex Power Semiconductors

File Size:

73.73 KB

Description:

Intelligent power module.
