PM50CBS060 Intelligent Power Module

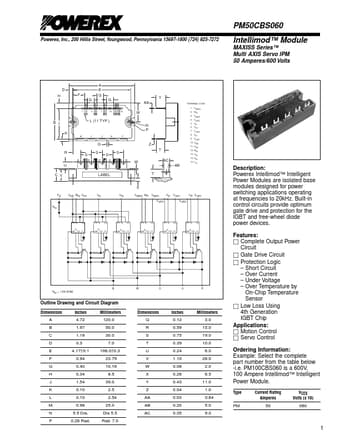

PM50CBS060 Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 Intellimod™ Module MAXISS Series™ Multi AXIS Servo IPM 50 Amperes/600 Volts D H F G 1 4 A E G G 7 10 15 Y AA M N P TERMINAL CODE 1. VWPC 2. WP 3. VWP1 4. VVPC 5. VP 6. VP1 7. VUPC 8. UP 9. VUP1 10. VNC B J K W L (11 TYP.) V U N P Q R U C V LABEL X FO VNC WN VN1 VN UN VWPC WP Z S S W T AC AB 11. VN1 12. WN 13. V N 14. UN 15. FO S S T VWP1 VVPC VP VVP1 VUPC UP VUP1 Rfo GND IN VCC .

PM50CBS060 Features

* Complete Output Power Circuit

* Gate Drive Circuit

* Protection Logic

* Short Circuit

* Over Current

* Under Voltage

* Over Temperature by On-Chip Temperature Sensor

* Low Loss Using 4th Generation IGBT Chip Applications:

* M
