QR1220T30 Fast Recovery Diode Module (200 Amp/1200 Volts)

QR1220T30 Features

* Fast Recovery Time Isolated Mounting Metal Baseplate Low Thermal Impedance 3000 V isolating voltage QRD QRC QRF Applications: Switching Power Supplies Inverters Choppers Welding Power Supplies Free Wheeling Diode High Frequency Rectifiers Dimensions A B C D E F G H J K Inches 3.70 1.34 1.18 3.1

QR1220T30 Datasheet (112.98 KB)

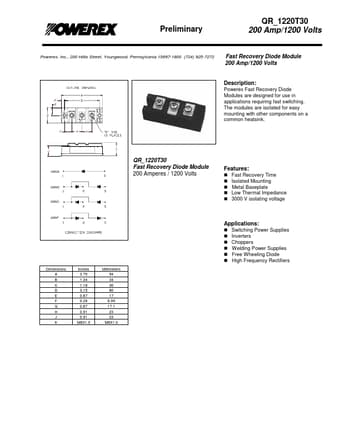

QR1220T30 Datasheet Preview — Preview of QR1220T30 PDF

Datasheet Details

Part number:

QR1220T30

Manufacturer:

Powerex Power Semiconductors

File Size:

112.98 KB

Description:

Fast recovery diode module (200 amp/1200 volts).
