QRS1240T30 - Fast Recovery Diode Module

Datasheet Summary

Description

Powerex Fast Recovery Diode Modules are designed for use in applications requiring fast switching.

The modules are isolated for easy mounting with other components on a common heatsink.

Features

  • Fast Recovery Time Isolated Mounting Metal Baseplate Low Thermal Impedance 3000 V isolating voltage.

📥 Download Datasheet

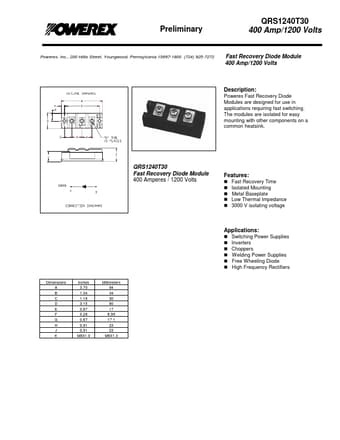

Datasheet preview – QRS1240T30

Datasheet Details

Part number QRS1240T30
Manufacturer Powerex Power Semiconductors
File Size 108.71 KB
Description Fast Recovery Diode Module
Datasheet download datasheet QRS1240T30 Datasheet
Additional preview pages of the QRS1240T30 datasheet.

📁 Similar Datasheet

  • QRSB165001 - High Voltage Single Diode Module (Powerex)
Other Datasheets by Powerex Power Semiconductors

Full PDF Text Transcription

Click to expand full text
Preliminary QRS1240T30 400 Amp/1200 Volts Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 Fast Recovery Diode Module 400 Amp/1200 Volts Description: Powerex Fast Recovery Diode Modules are designed for use in applications requiring fast switching. The modules are isolated for easy mounting with other components on a common heatsink. QRS1240T30 Fast Recovery Diode Module 400 Amperes / 1200 Volts QRS 1 Features: Fast Recovery Time Isolated Mounting Metal Baseplate Low Thermal Impedance 3000 V isolating voltage Applications: Switching Power Supplies Inverters Choppers Welding Power Supplies Free Wheeling Diode High Frequency Rectifiers Dimensions A B C D E F G H J K Inches 3.70 1.34 1.18 3.15 0.67 0.28 0.67 0.91 0.91 M6X1.
