PL30502

Synchronous Boost Converter

PL30502 Features

* Input Voltage Range :2.7V to 18V

* Output Voltage Range: 4.5V to 18V

* Efficiency up to 96%: VIN = 7.2 V, VBUS = 16 V, IOUT = 2 A

* Two 7mΩ FETs Integrated

* Adjustable switching frequency up to 2.2MHz

* Programmable Cycle-by-Cycle Current Limit up to 15A

* Hiccup Short

PL30502 General Description

The PL30502 is a 18-V synchronous Boost converter with the gate driver built-in for load disconnect. The PL30502 integrates two low on resistance power FETs: A 7-mΩ switching FET and a 7-mΩ rectifier FET. The PL30502 uses the adaptive constant off time peak current mode control. PL30502 has an inter.

PL30502 Datasheet (1.71 MB)

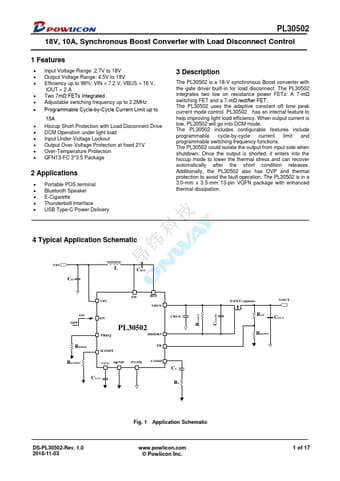

PL30502 Datasheet Preview — Preview of PL30502 PDF

Datasheet Details

Part number:

PL30502

Manufacturer:

Powlicon

File Size:

1.71 MB

Description:

Synchronous boost converter.
