PL8405 - Bidirectional charger

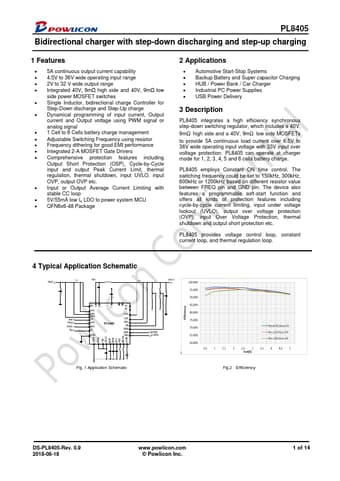

PL8405 Datasheet Preview — Preview of PL8405 PDF

Datasheet Details

Part number	PL8405
Manufacturer	Powlicon
File Size	1.40 MB
Description	Bidirectional charger
Datasheet	PL8405-Powlicon.pdf

PL8405 Product details

Description

PL8405 integrates a high efficiency synchronous step-down switching regulator, which includes a 40V, 9mΩ high side and a 40V, 9mΩ low side MOSFETs to provide 5A continuous load current over 6.5V to 36V wide operating input voltage with 33V input over voltage protection.

Features

5A continuous output current capability.
4.5V to 36V wide operating input range.
2V to 32 V wide output range.
Integrated 40V, 9mΩ high side and 40V, 9mΩ low side power MOSFET switches.
Single Inductor, bidirectional charge Controller for Step-Down discharge and Step-Up charge.
Dynamical programming of input current, Output current and Output voltage using PWM signal or analog signal.
1 Cell to 6 Cells battery charge management.
Adjustable Switching Frequ.
