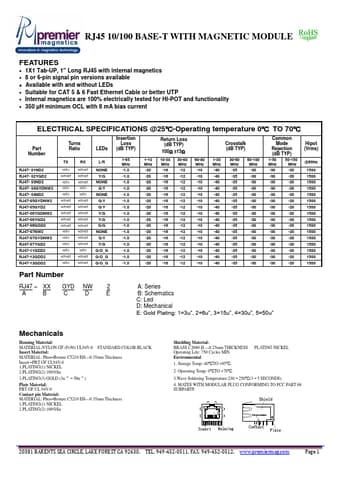

RJ47-02YGD2 10/100 BASE-T WITH MAGNETIC MODULE

RJ47-02YGD2 Features

* 1X1 Tab-UP, 1" Long RJ45 with internal magnetics

* 8 or 6-pin signal pin versions available

* Available with and without LEDs

* Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP

* Internal magnetics are 100% electrically tested for HI-POT and functionality

* 350 µH m

Datasheet Details

RJ47-02YGD2, RJ47-01ND2

Premier Magnetics

1.16 MB

10/100 base-t with magnetic module.

This datasheet PDF includes multiple part numbers: RJ47-02YGD2, RJ47-01ND2.
Please refer to the document for exact specifications by model.
