PT2395 Datasheet - Princeton Technology Corp

Enhanced Digital Echo

PT2395 Features

* enhanced functions such as continuous delay time with external VR (Variable Resistor), 256 K DRAM support for longer delay time (Extended Delay Mode, up to 800 ms at 4 MHz Clock) as compared to M50195P. Moreover, the distortion and

PT2395 General Description

PT2395 is a silicon gate CMOS-processed digital echo IC functionally compatible with M50195P. Input signal to PT2395 is converted to digital signal with A-D conversion then stored in the memory (DRAM) chip. After a certain delay time, digital signal is read out from the memory chip and then converte.

PT2395 Datasheet (257.59 KB)

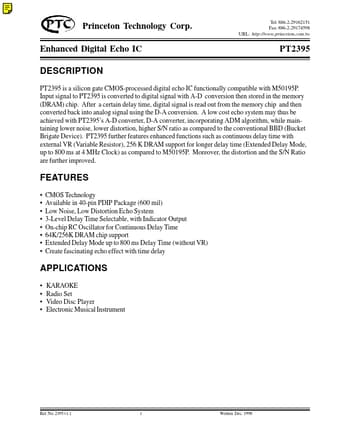

PT2395 Datasheet Preview — Preview of PT2395 PDF

Datasheet Details

Part number:

PT2395

Manufacturer:

Princeton Technology Corp

File Size:

257.59 KB

Description:

Enhanced digital echo.
