PT2264 - Remote Control Encoder IC

PT2264 Description

Tel: 886-2-66296288 Fax: 886-2-29174598 URL: http://www.princeton.com.tw Remote Control Encoder IC PT2264 .
PT2264 is a remote control encoder paired with PT2294 utilizing CMOS Technology.

PT2264 Features

* CMOS Technology Low Power Consumption Very High Noise Immunity Up to 12 Tri-State Code Address Pins Up to 4 Data Pins Wide Range of Operating Voltage: VCC = 8 ~ 15 V Single Resistor Oscillator Latch or Momentar

PT2264 Applications

* Remote Control Fan Home Security/Automation System Remote Control Toys Remote Control for Door Bell PT2264 v1.0 -1- June, 2004 Tel: 886-2-66296288 Fax: 886-2-29174598 URL: http://www. princeton. com. tw Remote Control Encoder IC PT2264 BLOCK DIAGRAM A0 A1

📥 Download Datasheet

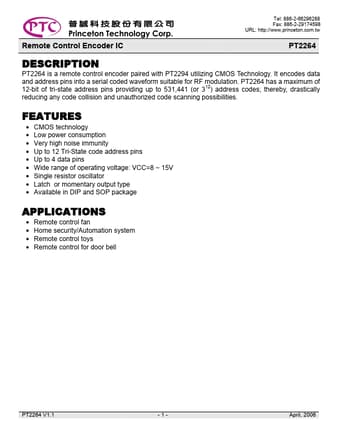

Preview of PT2264 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PT2264
Manufacturer
Princeton Technology
File Size
369.96 KB
Datasheet
PT2264_PrincetonTechnology.pdf
Description
Remote Control Encoder IC
