PT2484A, PT2484 - Dual H-Bridge Motor Driver

Name: PT2484A
SKU: PT2484A-1575492

Princeton Technology

📥 Download Datasheet

PT2484A Datasheet Preview — This datasheet PDF includes multiple part numbers: PT2484A, PT2484. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PT2484A, PT2484
Manufacturer	Princeton Technology
File Size	443.89 KB
Description	Dual H-Bridge Motor Driver
Datasheet	PT2484-PrincetonTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: PT2484A, PT2484. Please refer to the document for exact specifications by model.

PT2484A Product details

Description

The PT2484/PT2484A is a dual channel H-bridge motor driver that operates on wide supply voltage range from 4V to 16V. Airflow flap control for refrigerators. Air Conditioner venting control Home applia

Features

Wide Supply Voltage Range: 4V to 16V.
Single voltage supply with built-in regulator; control logic supply is not necessary.

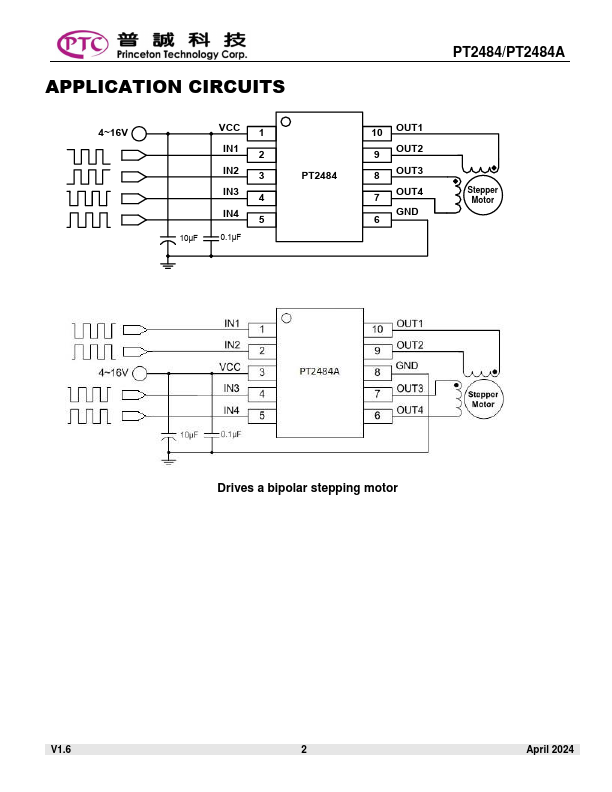

Dual H-bridge Drivers for a bipolar stepping motor or two brushed dc motors.
MOSFET RDS(on) Resistance HS + LS =1.2Ω.
Maximum Output Current: 1A (Peak), 700mA (RMS).
Low Power Stand-by mode.
Built-in Protection Circuits with Thermal Shutdown (TSD), Under Voltage Lock-Out (UVLO).
Output current limiting (OCL) during load terminal c.
