Part number:
PDNM6T20V7E
Manufacturer:
Prisemi
File Size:
123.54 KB
Description:
Dual n-channel mosfet.

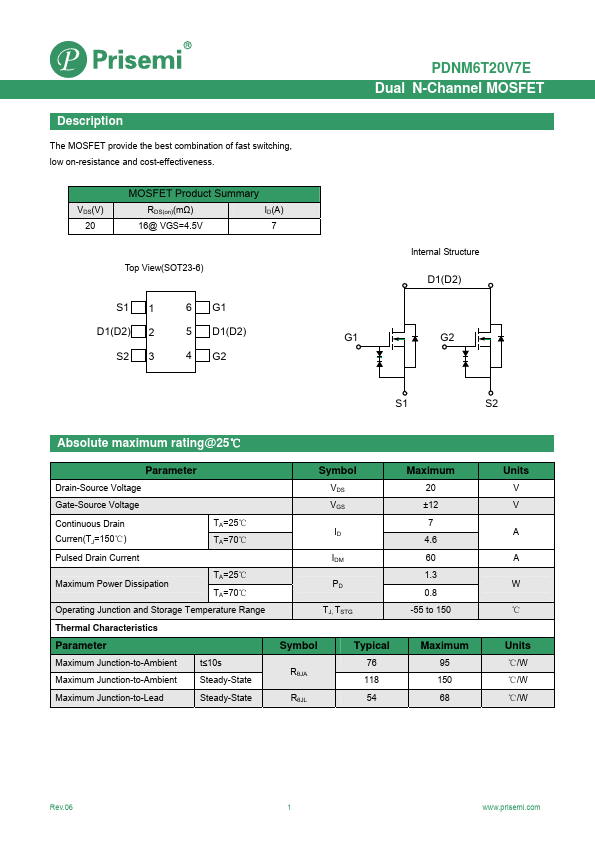

Datasheet Details
The MOSFET provide the best combination of fast switching, low on-resistance and cost-effectiveness.
VDS(V) 20 MOSFET Product Summary RDS(on)(mΩ) ID(A) 16@ VGS=4.5V 7 Top View(SOT23-6) S1 1 D1(D2) 2 S2 3 6 G1 5 D1(D2) 4 G2 PDNM6T20V7E Dual N-Channel MOSFET Internal Structure D1(D2) G1 G
Datasheet Details
PDNM6T20V7E
Prisemi
123.54 KB
Dual n-channel mosfet.
