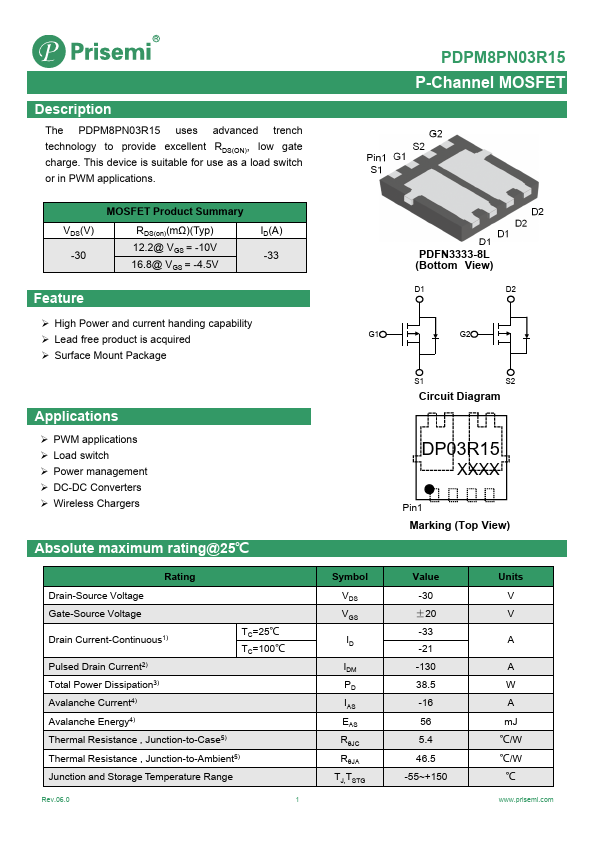

PDPM8PN03R15
Description
The PDPM8PN03R15 uses advanced trench technology to provide excellent RDS(ON), low gate charge. This device is suitable for use as a load switch or in PWM applications.
VDS(V) -30
MOSFET Product Summary
RDS(on)(mΩ)(Typ) 12.2@ VGS = -10V 16.8@ VGS = -4.5V
ID(A) -33
Feature
- High Power and current handing capability
- Lead free product is acquired
- Surface Mount Package
Applications
- PWM applications
- Load switch
- Power management
- DC-DC Converters
- Wireless Chargers
Absolute maximum rating@25℃
Rating
Drain-Source Voltage
Gate-Source Voltage
Drain Current-Continuous1) Pulsed Drain Current2)
TC=25℃ TC=100℃
Total Power Dissipation3)
Avalanche Current4)
Avalanche Energy4)
Thermal Resistance , Junction-to-Case5)
Thermal Resistance , Junction-to-Ambient5)
Junction and Storage Temperature Range
Rev.06.0
PDPM8PN03R15 P-Channel MOSFET
G2
S2 Pin1 G1 S1
D2 D2 D1 D1
PDFN3333-8L (Bottom View)
D1
D2
G1
G2
S1...
