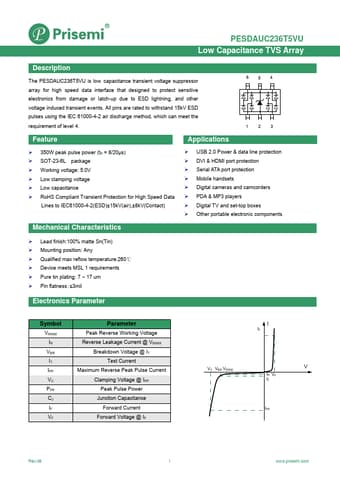

PESDAUC236T5VU
Description
The PESDAUC236T5VU is low capacitance transient voltage suppressor array for high speed data interface that designed to protect sensitive electronics from damage or latch-up due to ESD lightning, and other voltage induced transient events. All pins are rated to withstand 15k V ESD pulses using the IEC 61000-4-2 air discharge method, which can meet the requirement of level 4. S
654 123
Feature
- 350W peak pulse power (t P = 8/20μs)
- SOT-23-6L package
- Working voltage: 5.0V
- Low clamping voltage
- Low capacitance
- Ro HS pliant Transient Protection for High Speed Data
Lines to IEC61000-4-2(ESD)±15k V(air),±8k V(Contact)
Applications
- USB 2.0 Power & data line protection
- DVI & HDMI port protection
- Serial ATA port protection
- Mobile handsets
- Digital cameras and camcorders
- PDA & MP3 players
- Digital TV and set-top boxes
- Other portable electronic ponents
Mechanical Characteristics
- Lead finish:100% matte Sn(Tin)
- Mounting position: Any
- Qualified max reflow...
