PESDRC2FD5VB - Bi-directional 5V Low Capacitance ESD Protector

Prisemi

PESDRC2FD5VB Datasheet Preview — Preview of PESDRC2FD5VB PDF

Datasheet Details

Part number	PESDRC2FD5VB
Manufacturer	Prisemi
File Size	295.94 KB
Description	Bi-directional 5V Low Capacitance ESD Protector
Datasheet	PESDRC2FD5VB-Prisemi.pdf

PESDRC2FD5VB Product details

Description

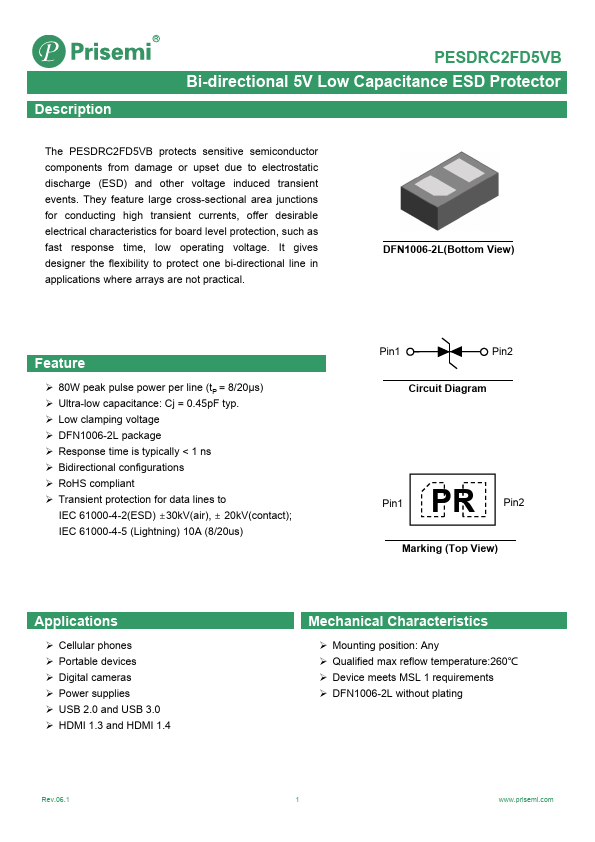

PESDRC2FD5VB Bi-directional 5V Low Capacitance ESD Protector The PESDRC2FD5VB protects sensitive semiconductor components from damage or upset due to electrostatic discharge (ESD) and other voltage induced transient events.They feature large cross-sectional area junctions for conducting high transient currents, offer desirable electrical characteristics for board level protection, such as fast response time, low operating voltage.It gives designer the flexibility to protect one bi-directiona
