PESDRC2XD3V3BF - Bi-directional 3.3V Low Capacitance ESD Protector

Prisemi

PESDRC2XD3V3BF Datasheet Preview — Preview of PESDRC2XD3V3BF PDF

Datasheet Details

Part number	PESDRC2XD3V3BF
Manufacturer	Prisemi
File Size	283.53 KB
Description	Bi-directional 3.3V Low Capacitance ESD Protector
Datasheet	PESDRC2XD3V3BF-Prisemi.pdf

PESDRC2XD3V3BF Product details

Description

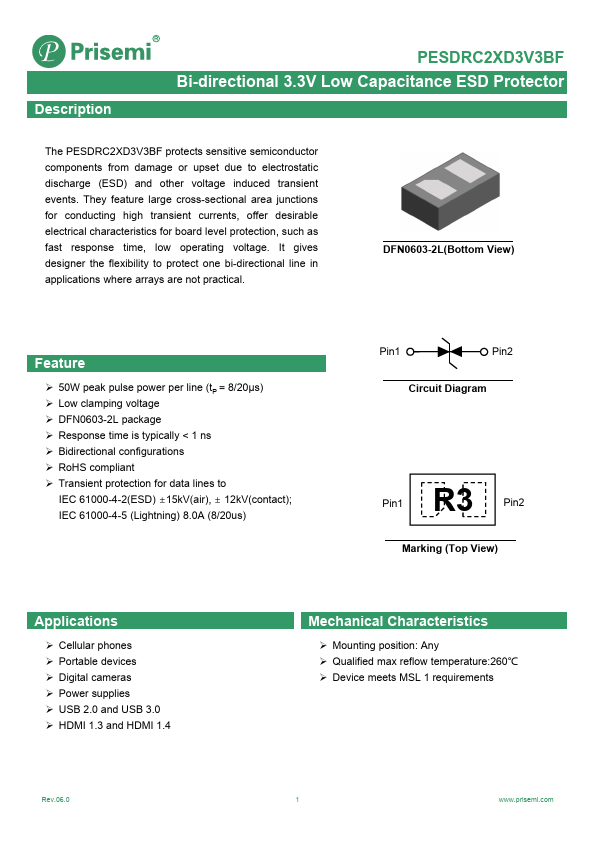

PESDRC2XD3V3BF Bi-directional 3.3V Low Capacitance ESD Protector The PESDRC2XD3V3BF protects sensitive semiconductor components from damage or upset due to electrostatic discharge (ESD) and other voltage induced transient events.They feature large cross-sectional area junctions for conducting high transient currents, offer desirable electrical characteristics for board level protection, such as fast response time, low operating voltage.It gives designer the flexibility to protect one bi-dire
