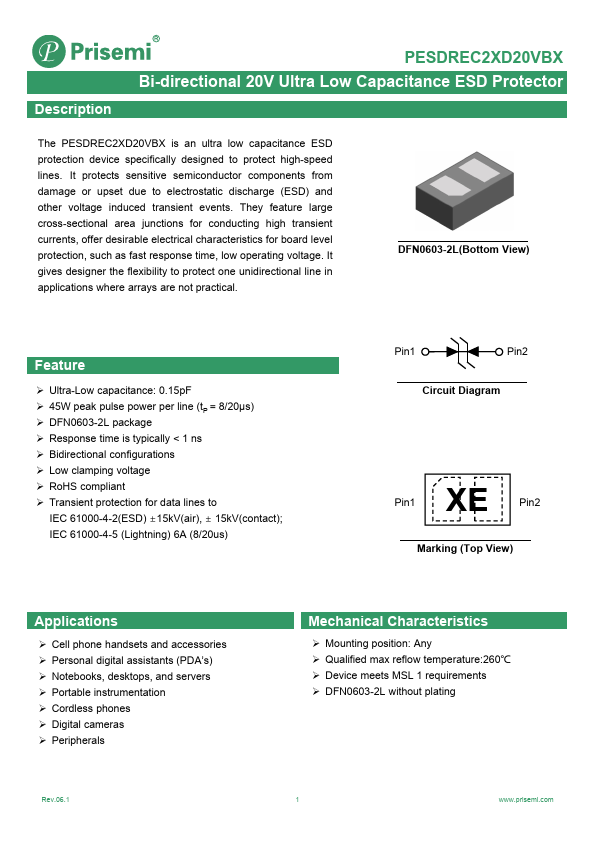

PESDREC2XD20VBX
Description
PESDREC2XD20VBX Bi-directional 20V Ultra Low Capacitance ESD Protector
The PESDREC2XD20VBX is an ultra low capacitance ESD protection device specifically designed to protect high-speed lines. It protects sensitive semiconductor ponents from damage or upset due to electrostatic discharge (ESD) and other voltage induced transient events. They feature large cross-sectional area junctions for conducting high transient currents, offer desirable electrical characteristics for board level protection, such as fast response time, low operating voltage. It gives designer the flexibility to protect one unidirectional line in applications where arrays are not practical.
DFN0603-2L(Bottom View)
Feature
- Ultra-Low capacitance: 0.15p F
- 45W peak pulse power per line (t P = 8/20μs)
- DFN0603-2L package
- Response time is typically < 1 ns
- Bidirectional configurations
- Low clamping voltage
- Ro HS pliant
- Transient protection for data lines to
IEC 61000-4-2(ESD) ±15k V(air), ± 15k...
