PGCDP70R180B 700V GaN Power Transistor

Prisemi

Description

.
PGCDP70R180B 700V GaN Power Transistor VDS(V) 700 Product Summary RDS(on)(mΩ)(Typ) 180 ID(A) 12. Easy to use, compatible with sta.

📥 Download Datasheet

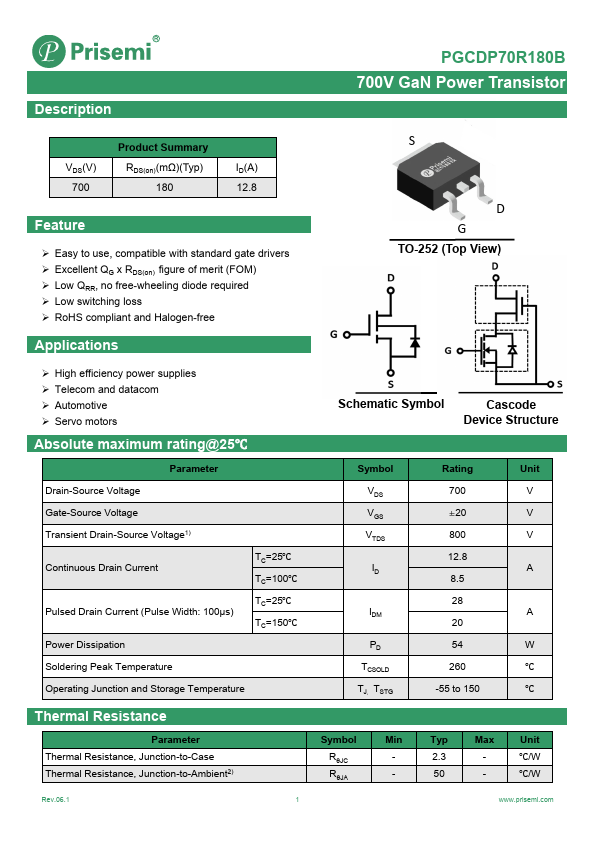

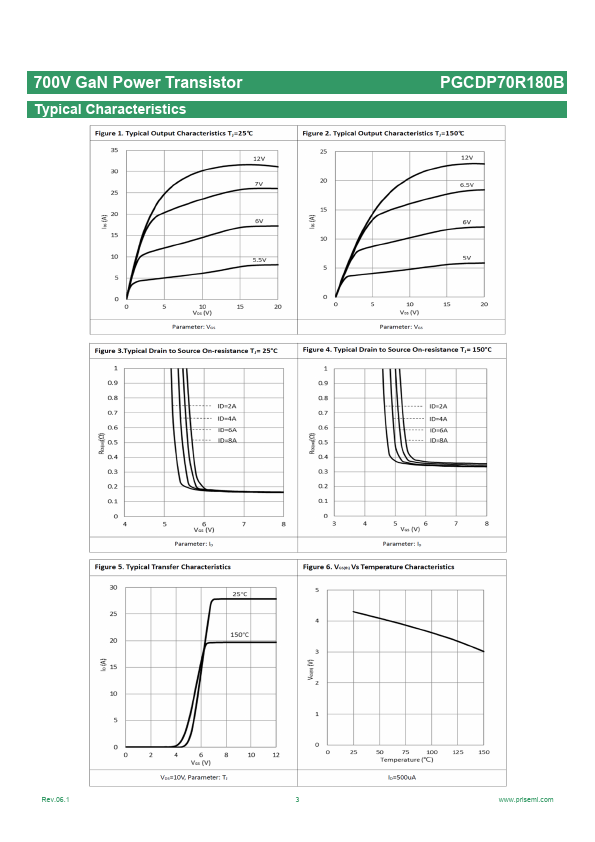

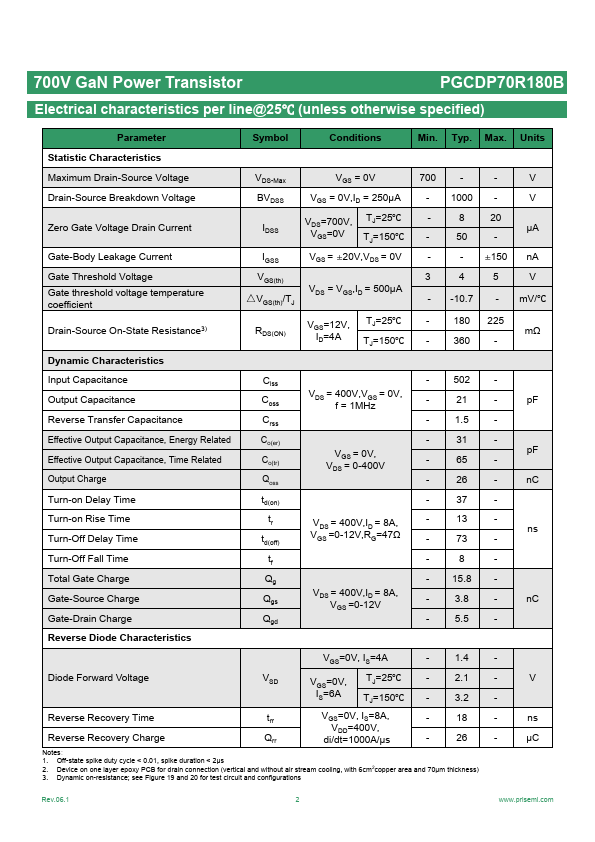

PGCDP70R180B Datasheet Preview — Preview of PGCDP70R180B PDF

Datasheet Specifications

Part number: PGCDP70R180B
Manufacturer: Prisemi
File Size: 2.00 MB
Datasheet: PGCDP70R180B-Prisemi.pdf
Description: 700V GaN Power Transistor

Applications

* High efficiency power supplies
* Telecom and datacom
* Automotive
* Servo motors Absolute maximum rating@25℃ Parameter Drain-Source Voltage Gate-Source Voltage Transient Drain-Source Voltage1) Continuous Drain Current Pulsed Drain Current (Pulse Width: 100μs) Power Dissipatio
