PI50F65T3H1A7 - Insulate-Gate Bipolar Transistor

Prisemi

PI50F65T3H1A7 Description

.
PI50F65T3H1A7 Insulate-Gate Bipolar Transistor CE G TO-247-3L Features. Trench and field-stop technology. Easy parallel switching capabili.

PI50F65T3H1A7 Features

* Trench and field-stop technology
* Easy parallel switching capability
* High efficiency for inverters
* High ruggedness performance

PI50F65T3H1A7 Applications

* Industrial UPS
* Welding machine
* Solar converters
* Energy storage
* EV charger
* PFC applications
* Welding machines Marking (Top View) Absolute maximum rating@25℃ Parameter Collector-Emitter Voltage Gate-Emitter Voltage Collector Current Pulsed Collector Current

📥 Download Datasheet

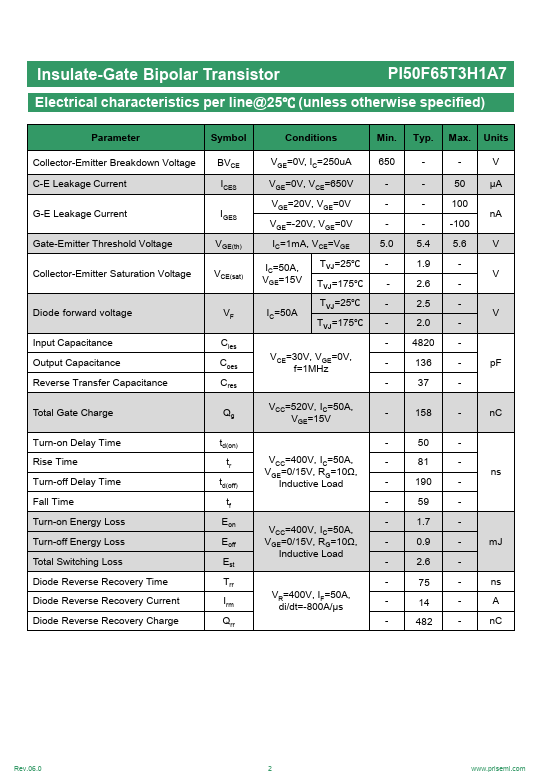

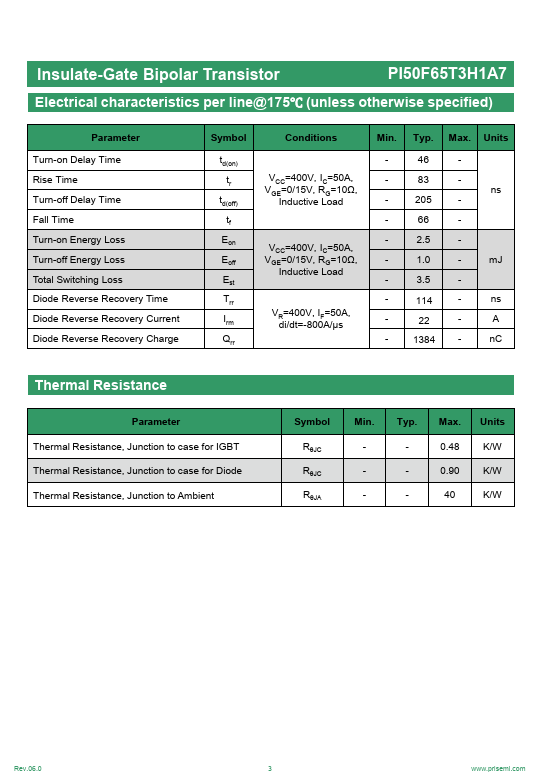

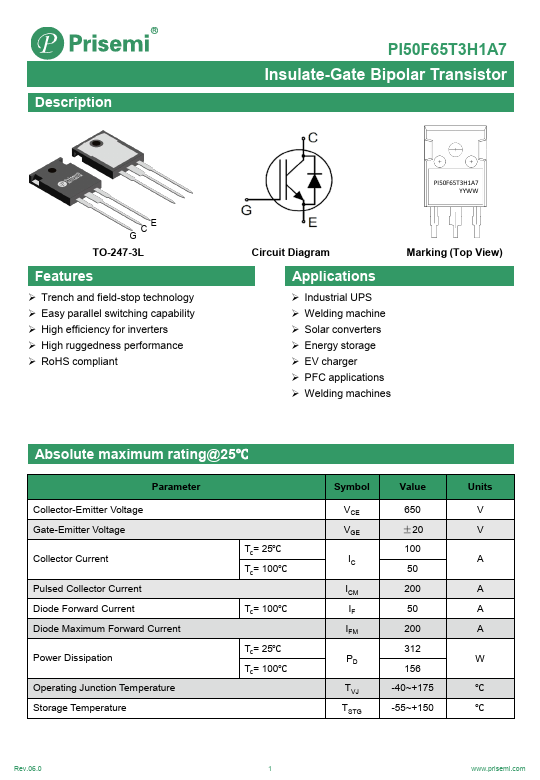

PI50F65T3H1A7 Datasheet Preview — Preview of PI50F65T3H1A7 PDF

Datasheet Details

Part number: PI50F65T3H1A7
Manufacturer: Prisemi
File Size: 1.37 MB
Datasheet: PI50F65T3H1A7-Prisemi.pdf
Description: Insulate-Gate Bipolar Transistor
