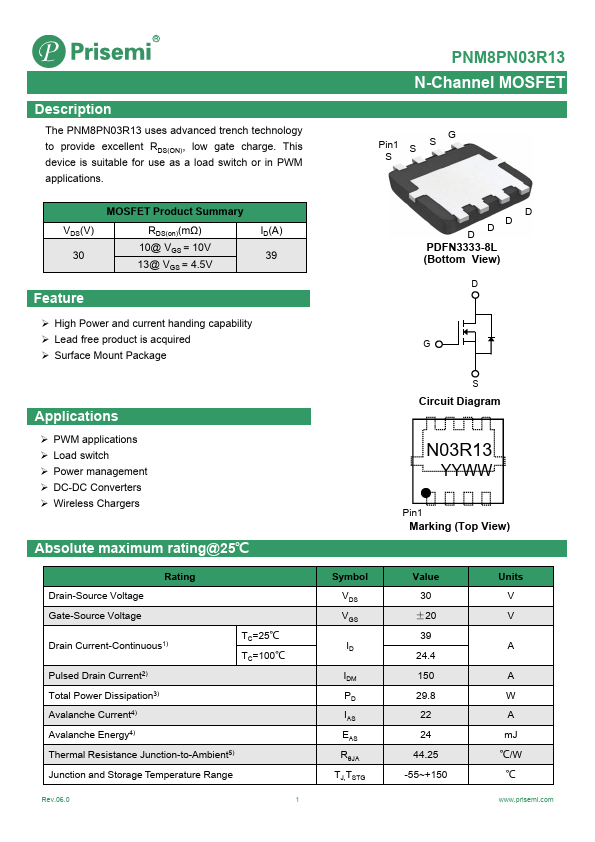

PNM8PN03R13
Description
The PNM8PN03R13 uses advanced trench technology to provide excellent RDS(ON), low gate charge. This device is suitable for use as a load switch or in PWM applications.
VDS(V) 30
MOSFET Product Summary
RDS(on)(mΩ) 10@ VGS = 10V 13@ VGS = 4.5V
ID(A) 39
Feature
- High Power and current handing capability
- Lead free product is acquired
- Surface Mount Package
Applications
- PWM applications
- Load switch
- Power management
- DC-DC Converters
- Wireless Chargers
Absolute maximum rating@25℃
Rating
Drain-Source Voltage
Gate-Source Voltage
Drain Current-Continuous1) Pulsed Drain Current2)
TC=25℃ TC=100℃
Total Power Dissipation3)
Avalanche Current4)
Avalanche Energy4)
Thermal Resistance Junction-to-Ambient5)
Junction and Storage Temperature Range
Rev.06.0
PNM8PN03R13 N-Channel MOSFET
Pin1 S S G S
D D DD PDFN3333-8L (Bottom View)
Circuit Diagram
N03R13
YYWW
Pin1 Marking (Top View)
Symbol VDS...
